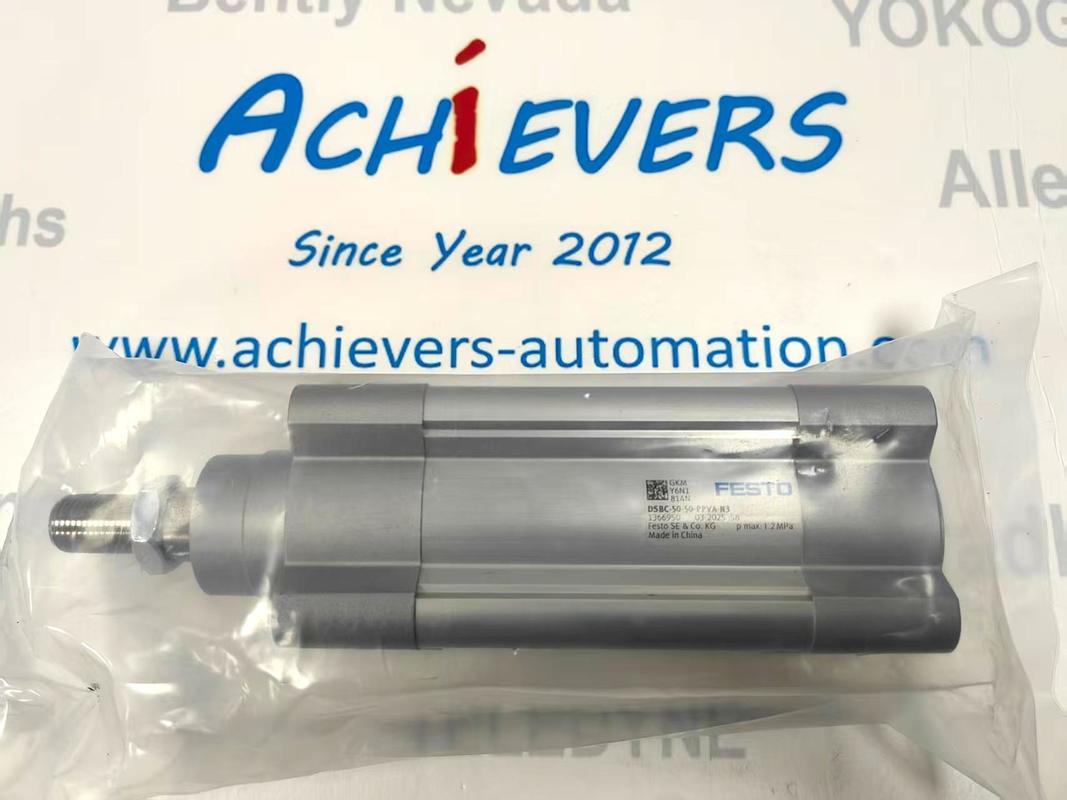

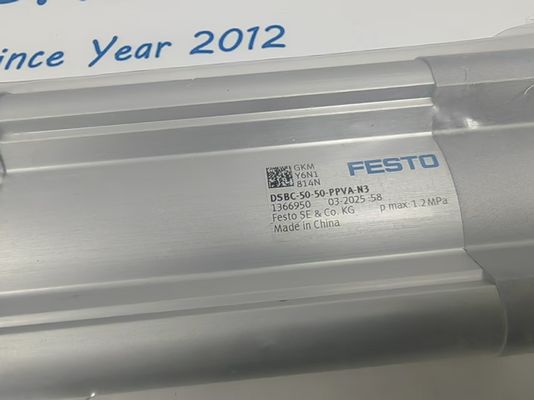

Festo DSBC-50-50-PPVA-N3 ISO standard profile cylinder designed
Description:
Manufacturer : Festo
Product No. :DSBC-50-50-PPVA-N3
https://www.achievers-automation.com More Products
The Festo DSBC-50-50-PPVA-N3 is a precision-engineered ISO standard profile cylinder designed for reliable linear motion in industrial automation. As part of Festo’s trusted DSBC series, it features a 50 mm piston diameter and 50 mm stroke, delivering robust force output for clamping, positioning, and light-duty material handling tasks. Compliant with ISO 15552 (ISO 6431, VDMA 24562) standards, this double-acting cylinder is equipped with adjustable pneumatic cushioning at both ends to minimize end-position impact and operational noise. Its rugged construction, sensor-ready design, and versatile mounting options ensure seamless integration into diverse industrial systems, from automotive assembly lines to packaging machinery.
Detail:
| Brand & Model |
Festo DSBC-50-50-PPVA-N3 (Order Code: 3431378; Alternative Reference: 1366950) |
| Type |
ISO Standard Profile Cylinder, Double-Acting, Single Piston Rod |
| Core Dimensions |
- Piston Diameter: 50 mm
- Stroke Length: 50 mm
- Cushioning Length: 22 mm |
| Operating Parameters |
- Operating Pressure Range: 0.4 bar (0.04 MPa) to 12 bar (1.2 MPa)
- Operating Medium: Compressed air (ISO 8573-1:2010 Class 7:4:4)
- Mounting Position: Optional (any orientation) |
| Force & Motion Data |
- Theoretical Force (Advance Stroke, 6 bar): 1178 N
- Moving Mass (0 mm Stroke): 365 g
- Additional Moving Mass per 10 mm Stroke: 25 g |
| Mechanical Data |
- Total Product Weight: 1.48 kg (1480 g)
- Basic Weight (0 mm Stroke): 1190 g
- Piston Rod Thread: M16 x 1.5 (Male)
- Housing Material: High-grade aluminium alloy (anodised) |
| Connections & Mounting |
- Pneumatic Connection: G 1/4
- Mounting Compatibility: Works with Festo’s full range of mounting accessories (via female thread) |
| Performance & Protection |
- Corrosion Resistance: Suitable for moderate industrial environments
- Impact Energy (End Positions): Optimized for medium-load applications |
| Certifications & Standards |
- Compliance: ISO 15552, ISO 6431, VDMA 24562, RoHS
- Country of Origin: Germany |
| Position Detection |
- Sensor Compatibility: Proximity switches
- Sensor Mounting: Integrated slot on one profile side |
