Honeywell STR82D2-41A1AS-I-AADD-11C-B-3 SmartLine Remote Diaphragm Seal Pressure Transmitter

Πιστοποίηση
Κίνα Achievers Automation Limited Πιστοποιήσεις
Ως Διευθυντής Προμηθειών, είμαι ιδιαίτερα ευαίσθητος στην τιμή. Τα προϊόντα σας προσφέρουν εξαιρετική ποιότητα σε μια αξιοσημείωτα ανταγωνιστική τιμή, δίνοντάς μας ένα σημαντικό πλεονέκτημα στην αγορά. Πρέπει ιδιαίτερα να ευχαριστήσω την ομάδα εξυπηρέτησής σας για τον εξαιρετικό επαγγελματισμό και την υπομονή της στην αντιμετώπιση των πολύπλοκων απαιτήσεων εφοδιαστικής μας, διασφαλίζοντας την άφιξη των εμπορευμάτων

—— Κύριος Άρι Γουιμπόβο - Υπεύθυνος Προμηθειών

Η σταθερότητα και η αντοχή της ποιότητας των προϊόντων σας είναι οι κορυφαίες προτεραιότητές μας, και τα προϊόντα σας ξεπέρασαν πολύ τις προσδοκίες μας.Ενώ η αρχική έλξη ήταν η τιμήΑυτό που εξασφάλισε τη μακροχρόνια συνεργασία μας είναι η άψογη υπηρεσία σας μετά την πώληση.

—— Κύριε Αχμέντ Ράζα-Επιχειρήσεις Ντιρέ

Το επίπεδο επαγγελματικής εξυπηρέτησης που επέδειξε η εταιρεία σας, από την αρχική μας επικοινωνία έως την τελική παράδοση, ήταν πραγματικά εντυπωσιακό. Είχαν βαθιά κατανόηση της επείγουσας φύσης του έργου μας στο Ριάντ. Φυσικά, η κορυφαία εξυπηρέτηση πρέπει να υποστηρίζεται από ένα κορυφαίο προϊόν, και η ποιότητα του προϊόντος σας ανταποκρίνεται και υπερβαίνει τα υψηλά μας πρότυπα. Λαμβάνοντας υπόψη τ

—— κ. Khalid - Διευθυντής Έργου

Είμαι Online Chat Now

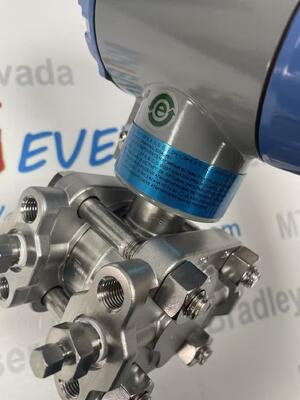

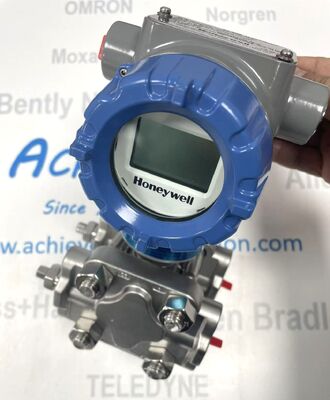

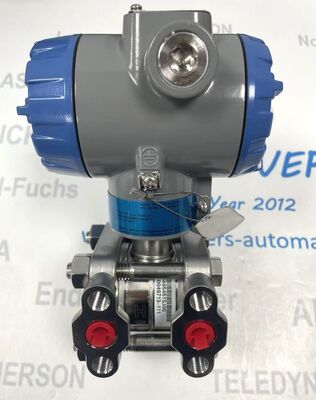

Honeywell STR82D2-41A1AS-I-AADD-11C-B-3 SmartLine Remote Diaphragm Seal Pressure Transmitter

Honeywell STR82D2-41A1AS-I-AADD-11C-B-3 SmartLine Remote Diaphragm Seal Pressure Transmitter
Honeywell STR82D2-41A1AS-I-AADD-11C-B-3 SmartLine Remote Diaphragm Seal Pressure Transmitter Honeywell STR82D2-41A1AS-I-AADD-11C-B-3 SmartLine Remote Diaphragm Seal Pressure Transmitter Honeywell STR82D2-41A1AS-I-AADD-11C-B-3 SmartLine Remote Diaphragm Seal Pressure Transmitter Honeywell STR82D2-41A1AS-I-AADD-11C-B-3 SmartLine Remote Diaphragm Seal Pressure Transmitter Honeywell STR82D2-41A1AS-I-AADD-11C-B-3 SmartLine Remote Diaphragm Seal Pressure Transmitter

Μεγάλες Εικόνας :  Honeywell STR82D2-41A1AS-I-AADD-11C-B-3 SmartLine Remote Diaphragm Seal Pressure Transmitter

Λεπτομέρειες:
Μάρκα: Honeywell
Πιστοποίηση: ATEX
Αριθμό μοντέλου: STR82D2-41A1AS-I-AADD-11C-B-3
Πληρωμής & Αποστολής Όροι:
Ποσότητα παραγγελίας min: 1
Τιμή: Διαπραγματεύσιμα
Συσκευασία λεπτομέρειες: χαρτοκιβώτιο
Όροι πληρωμής: T/T, Allipay, PayPal
Δυνατότητα προσφοράς: 100pcs το μήνα
Λεπτομερής Περιγραφή Προϊόντος
Όνομα οικογένειας: Οικογένεια σειράς LS Πρόγραμμα: C = Κανένας
Υλικό: Ψευδάργυρος Die-Cast Γεμίζω υγρό: Σιλικόνερο 200
Κεφαλοφόρος: Εγκατάσταση κεφαλής τύπου DIN B Εισαγωγή αισθητήρων: Μοναδικό ή διπλό (διαφορά ή μέσος όρος)
Θέση βαλβίδας: Συνήθως κλειστό Μοντέλο: Πομπός HONEYWELL
Κατασκευή: Honeywell
Επισημαίνω:

Honeywell SmartLine pressure transmitter

,

remote diaphragm seal transmitter

,

industrial pressure transmitter with warranty

Honeywell STR82D2-41A1AS-I-AADD-11C-B-3 SmartLine Remote Diaphragm Seal Pressure Transmitter

Manufacturer : Honeywell

Product No. : STR82D2-41A1AS-I-AADD-11C-B-3


https://www.achievers-automation.com      More Products

Description:


The Honeywell STR82D2-41A1AS-I-AADD-11C-B-3 is a premium member of Honeywell’s SmartLine STR82D series remote diaphragm seal pressure transmitters . Engineered for demanding industrial process environments, this device integrates high-performance sensor technology with optimized hydraulic and mechanical designs to minimize temperature-induced measurement errors in remote seal systems. As a core component of Honeywell’s process instrumentation portfolio, it delivers reliable, accurate pressure data for industries ranging from oil and gas to chemical processing, ensuring compliance with global safety and performance standards .


Detail:




Parameter Category
Detailed Specification
Brand
Honeywell
Model
STR82D2-41A1AS-I-AADD-11C-B-3
Product Series
SmartLine STR82D Remote Diaphragm Seal Pressure Transmitter
Reference Accuracy
Up to 0.065% of calibrated span (max 0.05% of span for premium range)
Measurement Range
Up to 2000 psi (137.9 bar) differential pressure; up to 2000 psig (137.9 bar) gauge pressure
Process Wetted Material
316L Stainless Steel (SST), Alloy C-276, Tantalum (selectable)
Protection Rating
IP65
Operating Temperature
-40°C to 85°C
Installation Method
DIN rail or wall-mounted
Communication Protocols
4-20 mA HART, WirelessHART, FOUNDATION Fieldbus, PROFIBUS, 1-5 V Low Power HART
Safety Certification
SIL 2/3 certified to IEC 61508; compliant with ANSI/NFPA 70-202, ANSI/ISA 12.27.0
Overpressure Protection
Up to 2 times the maximum measurement range
Display
Alphanumeric LCD
Rangedown Ratio
Up to 100:1


Honeywell STR82D2-41A1AS-I-AADD-11C-B-3 SmartLine Remote Diaphragm Seal Pressure Transmitter 0


Honeywell STR82D2-41A1AS-I-AADD-11C-B-3 SmartLine Remote Diaphragm Seal Pressure Transmitter 1



BRAND


Honeywell STR82D2-41A1AS-I-AADD-11C-B-3 SmartLine Remote Diaphragm Seal Pressure Transmitter 2


Honeywell, Inc. was founded by Mark C. Honeywell in 1906 and entered the defense industry during World War II by manufacturing aviation products. The special materials business can be traced back to a small company founded by chemist William H. Nichols in 1870. In 1999, it merged with AlliedSignal, Inc. to form the current Honeywell International. Although AlliedSignal is an inherited entity and twice the size of Honeywell, the company still uses the name Honeywell because the latter has a higher brand recognition. On the other hand, Honeywell merged its headquarters into Union Signal's headquarters in Morstertown, New Jersey. As a result, more than a thousand people lost their jobs in Minneapolis, Minnesota, where Honeywell's former headquarters was located. A small number of people moved to work at the new headquarters, while the vast majority had to look for new jobs or retire. So, shortly after the merger, the company's stock plunged sharply and did not return to the pre-merger level until 2007.

Honeywell STR82D2-41A1AS-I-AADD-11C-B-3 SmartLine Remote Diaphragm Seal Pressure Transmitter 3





Achievers Automation Limited has more than 10 years experience in the market of Industrial Automation, specialized in reselling factory sealed Probe, Sensor, DCS,isolator barrier, HMI, PLC,Adapter,Profibus connector and cable from Brands as BENTLY NEVADA, Endress+Hauser, MTL,Allen-Bradley, Pepperl+Fuchs,YOKOGAWA,Rosemount, ASCO, Schneider, Lenze, Pro-face, Mitsubishi, Omron, Lenze, Delta, Honeywell, Siemens and etc. If you have any request, please do not hesitate to contact us.


Honeywell STR82D2-41A1AS-I-AADD-11C-B-3 SmartLine Remote Diaphragm Seal Pressure Transmitter 4
